HX1080GS High Speed Web Fed Flexo Printing and Saddle Stitching Line: Over 100,000 Books Per Shift with Just Four Operators

Introduction

The HX1080GS High Speed Web Fed Flexo Printing and Saddle Stitching Line is a fully automated system built specifically for high volume exercise book manufacturing. Controlled through an intuitive human machine interface (HMI), this line delivers eco friendly two color double sided flexo printing at speeds up to 400 meters per minute. It seamlessly integrates a 12 step workflow from auto guided unwinding to saddle stitching with up to 8 heads, folding, and final delivery. Requiring only four operators, the HX1080GS produces more than 100,000 books per shift, maximizing efficiency and minimizing labor costs for saddle stitched notebook production.

Seamless 12 Step Workflow for High Volume Production

The HX1080GS is designed as a complete production line. From the moment the web enters the machine to the moment finished books are delivered, every step is fully automated. The 12 step workflow includes auto guided unwinding, followed by web handling, two color double sided flexo printing, then sheeting, stacking, cover feeding, saddle stitching with up to 8 heads, folding, and final delivery. Because all steps are integrated into one continuous line, there is no need for manual transfer between stations. This reduces handling time, prevents misalignment, and allows the line to run at consistent high speeds. The HMI gives operators centralized control over the entire process, making it easy to monitor production, adjust settings, and maintain quality across long runs.

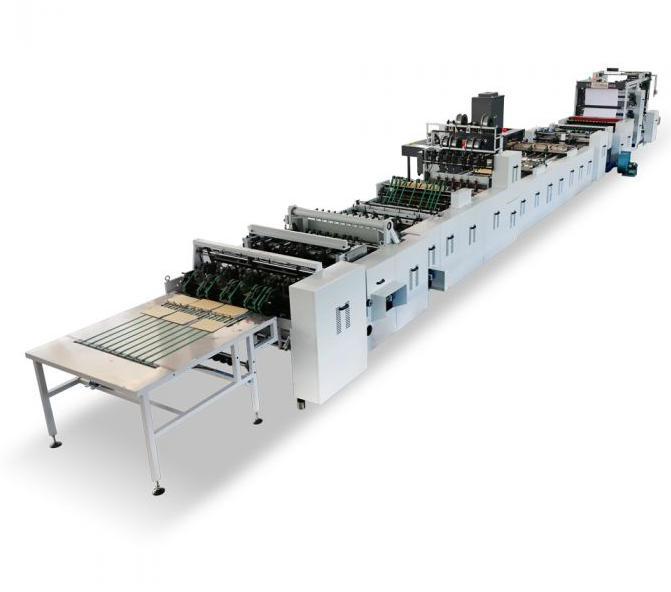

HX1080GS High Speed Web Fed Flexographic Printing and Saddle Stitching Exercise Book Production Line

High Speed Two Color Double Sided Flexo Printing

The HX1080GS is built around an eco friendly flexo printing unit that prints two colors on both sides of the web in a single pass. Printing speed is adjustable from 30 to 400 meters per minute, allowing you to run delicate papers at lower speeds and standard exercise book papers at maximum output. The printing width matches the web width, ranging from 680 to 1080 mm, and the printing circumference spans from 255 to 600 mm. This range covers most common exercise book and notebook sizes. Double sided printing in one pass not only saves time but also ensures perfect front to back register, which is essential for educational workbooks where lines and grids must align precisely.

Web Handling and Sheeting Parameters

The HX1080GS accepts web paper thickness from 45 to 100 grams per square meter, covering everything from lightweight writing paper to standard exercise book paper. Maximum web paper diameter is 1270 mm, allowing long runs between roll changes. The sheeting unit cuts the printed web into sheets with a size ranging from 255 to 600 mm. These sheets are then automatically stacked into piles of 6 to 52 sheets per stack. This wide stacking range means you can produce thin booklets with just a few sheets or thick notebooks with over 50 sheets per book. The stacking process is integrated directly with the printing and sheeting speeds, so there is no need for a separate offline collating step.

Cover Feeding for Durability

Notebooks and exercise books require a cover that is stronger than the inside pages. The HX1080GS includes a dedicated cover feeder designed for paper thickness from 70 to 300 grams per square meter. The feeder specification matches the rest of the line: running direction from 255 to 600 mm, and width direction from 680 to 1080 mm. This ensures that every cover fits perfectly around the stacked sheets before stitching. The cover feeder operates automatically, synchronized with the sheeting and stacking sections, so covers are fed precisely when each stack is ready.

Saddle Stitching with Up to 8 Heads

After the cover is wrapped around the sheet stack, the saddle stitching unit takes over. The HX1080GS can be equipped with up to 8 stitching heads, allowing multiple staples along the spine for extra strength. Stitching thickness ranges from 1 to 5 mm, which covers typical exercise book thicknesses. Stitching speed runs from 5 to 60 cycles per minute, matching the cutting speed of the line. This synchronization is critical because any mismatch would cause jams or incomplete books. With up to 8 heads, you can also produce books with two or more staples without slowing down the line.

Folding, Cross Cutting, and Slitting for Finished Size

Once stitched, the book moves into the folding unit. The folding size is the same as the sheeting size, from 255 to 600 mm, but after folding the book becomes half that size in the running direction, ranging from 127.5 to 300 mm. This creates the classic saddle stitched booklet format. Next, the cross cutting unit trims the books to a final size of 123 to 297 mm. Finally, the slitting unit separates the multi lane web into individual books with a slitting size of 140 to 300 mm. Both cross cutting and slitting operate at the same speed as the stitching unit, from 5 to 60 cycles per minute. The result is a completely finished, trimmed, and separated book ready for packaging.

Minimal Labor Requirement

One of the most impressive features of the HX1080GS is its low labor requirement. Despite producing over 100,000 books per shift, the entire line requires just four operators. This is made possible by the fully automated 12 step workflow and the intuitive HMI. Operators do not need to manually feed sheets, move stacks between stations, or hand stitch books. Instead, they focus on loading web rolls, managing cover stock, monitoring the HMI, and removing finished book stacks. For manufacturers, this directly reduces labor costs per book and allows you to allocate skilled workers to other tasks.

Detailed Parameter Summary

For production planners and engineers, here are all the technical parameters exactly as provided:

Web Paper Thickness: 45 to 100 gsm
Web Paper Width: 680 to 1080 mm
Max Web Paper Diameter: 1270 mm
Printing Speed: 30 to 400 m per minute
Printing Width: 680 to 1080 mm
Printing Circumference: 255 to 600 mm
Sheeting Size: 255 to 600 mm
Sheets Per Stack: 6 to 52 sheets per stack
Feeder Specification: 255 to 600 mm (running direction), 680 to 1080 mm (width direction)
Cover Thickness: 70 to 300 gsm
Stitching Thickness: 1 to 5 mm
Folding Size: 255 to 600 mm (127.5 to 300 mm after folding)
Cross Cutting Size: 123 to 297 mm
Slitting Size: 140 to 300 mm
Stitching Speed: 5 to 60 cycles per minute
Cutting Speed: 5 to 60 cycles per minute

These parameters define the operating envelope of the HX1080GS. Within this range, the line can produce a wide variety of saddle stitched exercise books and notebooks.

Why Choose the HX1080GS for Exercise Book Manufacturing

The market for school exercise books and notebooks is highly competitive. Manufacturers need equipment that runs fast, requires few operators, and produces consistent quality. The HX1080GS meets all these requirements. Its 400 meter per minute printing speed is among the fastest in its class. The ability to print two colors on both sides in one pass doubles throughput compared to single sided or two pass machines. The integrated 12 step workflow eliminates work in process inventory and reduces floor space requirements. And with just four operators for over 100,000 books per shift, labor costs per unit are dramatically lower than with semi automatic lines.

Eco Friendly Operation

The original specification highlights that the HX1080GS delivers eco friendly two color double sided flexo printing. Flexo printing itself uses less energy than gravure for certain applications, and double sided printing in one pass reduces paper waste and energy consumption per book. Manufacturers looking to lower their environmental footprint will appreciate that the line is designed for efficient material use and high speed output, which means fewer emissions per thousand books produced.

Built for High Volume Notebook Production

The HX1080GS is specifically described as a system for high volume exercise book manufacturing. Every component, from the auto guided unwinding to the final delivery, is selected for continuous operation. The maximum web diameter of 1270 mm allows large rolls that keep the line running for extended periods. The stacking range of 6 to 52 sheets per stack covers most school notebook specifications. The cover thickness range of 70 to 300 gsm accommodates everything from lightweight card covers to heavy board like covers. And the stitching thickness of 1 to 5 mm means you can produce thin workbooks as well as thick composition books on the same line.

Ease of Operation Through HMI

The human machine interface is described as intuitive. For production managers, this means shorter training times for new operators and fewer mistakes during setup. The HMI centralizes control of the entire 12 step workflow, so operators do not need to learn separate controls for printing, sheeting, stacking, stitching, folding, and cutting. All adjustments, speed settings, and monitoring are done from one screen. This also simplifies troubleshooting because the HMI can show exactly where any issue occurs along the line.

Conclusion

The HX1080GS High Speed Web Fed Flexo Printing and Saddle Stitching Line delivers exactly what high volume exercise book manufacturers need: speed, automation, and low labor costs. Printing at up to 400 meters per minute, integrating a 12 step workflow from unwinding to final delivery, requiring just four operators, and producing over 100,000 books per shift, this line is purpose built for saddle stitched notebook production. The parameters give you flexibility in paper thickness, book size, stack thickness, cover weight, and stitching thickness. And the eco friendly two color double sided flexo printing helps you meet environmental standards while keeping production efficient. For manufacturers ready to scale up or replace outdated equipment, the HX1080GS is a proven solution.
